Understanding Electric Motor Enclosures

By Mike Switzer, Product Line Manager - Motors

Electric motors power the machines and systems that keep industries, facilities, and businesses running. To ensure long-term performance and safety, motors must be adequately protected—this is where motor enclosures play a crucial role. In this blog, I’ll explain what motor enclosures are, explore the different types available, and cover key considerations for selection, cooling, and maintenance.



What Is a Motor Enclosure?

A motor enclosure is a protective casing designed to shield the internal components of an electric motor from environmental hazards, including dust, moisture, chemicals, and physical impacts. In addition to this protection, enclosures also help regulate airflow and heat dissipation, contributing to a motor’s overall performance and service life. Beyond environmental shielding, enclosures also improve personnel safety by preventing contact with energized parts. In specific configurations, they can also reduce operating noise and minimize mechanical wear by protecting the motor from abrasions or impacts.



Types of Electric Motor Enclosures

Motor enclosures are designed to meet a wide range of environmental and cooling demands, depending on the specific application. Below is an overview of some of the most commonly used enclosure types, along with a brief description of their key characteristics and intended uses.

•

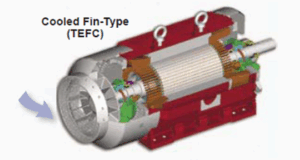

  TEFC (Totally Enclosed Fan Cooled): motors utilize a shaft-mounted internal fan to circulate air across the motor’s external frame, thereby helping to dissipate heat. These are commonly used in industrial environments where dust and moisture are present.

• TENV (Totally Enclosed Non-Ventilated): enclosures lack fans and rely on natural convection to cool the motor. They’re often found in smaller or DC motor applications.
• TEFV (Totally Enclosed Force-Ventilated): uses an independent external blower (not mounted on the motor shaft) to move air over the motor frame. Commonly used in DC motor applications or when the motor speed varies.
• TEBC (Totally Enclosed Blower Cooled): is an informal term often used for TEFV motors, particularly in DC motor contexts.
• TEAO (Totally Enclosed Air Over): This motor must be installed in systems where a separate fan or blower supplies constant airflow across the motor frame. Unlike TEFV motors, TEAO units have neither internal nor external blowers—they rely entirely on the host equipment for cooling.

•

  TEAAC (Totally Enclosed Air-to-Air Cooled): uses internal fans to circulate air within the motor, which an external air-to-air heat exchanger then cools. The system is completely sealed, making it ideal for dusty environments.

• TEWAC (Totally Enclosed Water-to-Air Cooled): Similar to TEAAC but uses a water-cooled heat exchanger to cool internal air. Water flows through tubes or coils within the exchanger, but it never directly contacts internal motor components.
• WPI (Weather Protected Type I): Designed for moderate outdoor exposure; protects against large particles and light moisture, but not recommended for dirty or corrosive environments.

•

  WPII (Weather Protected Type II): Features internal baffling and drainage to protect against rain, airborne particles, and moisture—better suited for harsher outdoor conditions.

• ODP (Open Drip Proof): motors are designed with open vents and downward-angled louvers that permit natural airflow while preventing vertical drips. These are best suited for clean, dry indoor settings.
• XP (Explosion Proof): enclosures are built to withstand any internal explosion and prevent ignition of flammable gases in hazardous environments.



How Enclosures Impact Cooling and Airflow

Motor cooling is a critical function that directly affects efficiency and lifespan. Enclosure design plays a central role in determining how air flows around and through the motor.

Totally enclosed motors like TEFC or TENV restrict external airflow and rely on built-in fans or external blowers to manage heat. By contrast, ODP and other open enclosures allow for natural ventilation but provide less protection from environmental contaminants.

Proper airflow management ensures that motors operate within safe temperature ranges. Inadequate cooling can lead to overheating, reduced insulation life, and eventual motor failure.



Why Choosing the Right Enclosure Matters

Selecting the correct enclosure offers several long-term advantages. It reduces maintenance needs by protecting internal components from dust and moisture. It also extends the motor’s lifespan through better thermal regulation and shielding. In environments with harsh or hazardous conditions, the right enclosure can help avoid costly downtime or catastrophic failure.



Maintenance and Replacement Best Practices

Staying on top of regular maintenance and timely replacements is essential for extending the lifespan of your motors and reducing the risk of unexpected equipment issues. A well-maintained motor not only performs more reliably but also helps prevent costly downtime and repairs over time.

When replacing a motor, always match the new enclosure type to the original specifications. Using a less protective design—such as substituting an ODP motor in place of a TEFC—can expose sensitive components to contaminants and shorten the motor’s service life.

Motors equipped with WPI or WPII enclosures often include air filters to help manage airflow. Over time, these filters can become clogged with dust or debris, reducing ventilation and raising internal temperatures. To maintain performance, filters should be removed, cleaned with high-pressure water, and reinstalled on a regular basis.

By following proper maintenance practices and ensuring enclosure compatibility, you can protect your investment, enhance motor reliability, and keep your operations running smoothly.



Conclusion

Motor enclosures are more than just protective shells—they are critical components that influence safety, reliability, cooling efficiency, and overall motor health. By understanding the available options and selecting the right design for your application, you can ensure your motors perform effectively and last longer, even in challenging operating environments.
